SRv6 uSID Configuration

Author:Jakub Horn

This document describes simple SRv6 uSID configuration in IOS XR 7.3.1. It covers SRv6 uSID itself, L3VPN for IPv4 and IPv6, TI-LFA and microloop avoidance and Flexible Algorithm. This document is collateral to the 7.3.1 feature introduction: Video.

Introduction

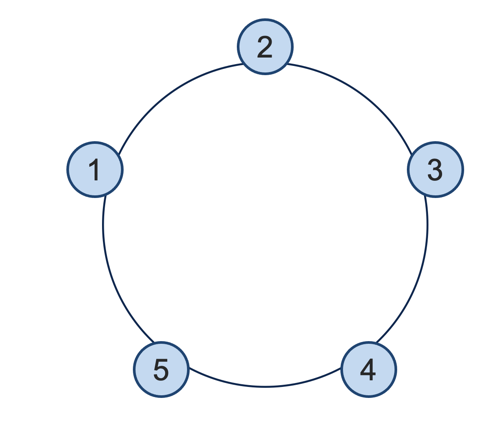

Simple network with 5 routers. Platforms are NCS540 and NCS5501. But configurations are same across IOS XR portfolio.

Configurations on all routers are very identical. The only exception is BGP where we made router 1 route reflector. Here we will provide configuration templates and at the end of the document you can find full device configurations for each router. Wherever we use uppercase X in the configuration it means router id so 1 for router 1, 2 for router 2, etc. For SRv6 on the NCS platform we need to enable HW profile. After enabling the HW profile router needs to be reloaded.

hw-module profile segment-routing srv6 mode micro-segment format f3216

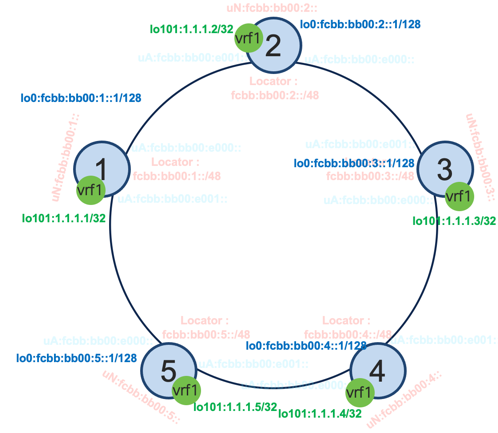

Basic SRv6 Configuration

Interfaces:

interface TenGigE0/0/0/0
 ipv6 enable
 no shut

interface TenGigE0/0/0/1
 ipv6 enable
 no shut

SRv6 locator:

segment-routing
 srv6
  locators
   locator MAIN
    micro-segment behavior unode psp-usd
    prefix fcbb:bb00:X::/48

here we used X for template, which means config for router 1 is prefix fcbb:bb00:1::/48 for router 2 prefix fcbb:bb00:1::/48 etc

ISIS Configuration

router isis 1
 is-type level-1
 net 49.0.0.X.00
 address-family ipv6 unicast
  metric-style wide
  segment-routing srv6
   locator MAIN

 interface TenGigE0/0/0/0
  point-to-point
  address-family ipv6 unicast

 interface TenGigE0/0/0/1
  point-to-point
  address-family ipv6 unicast

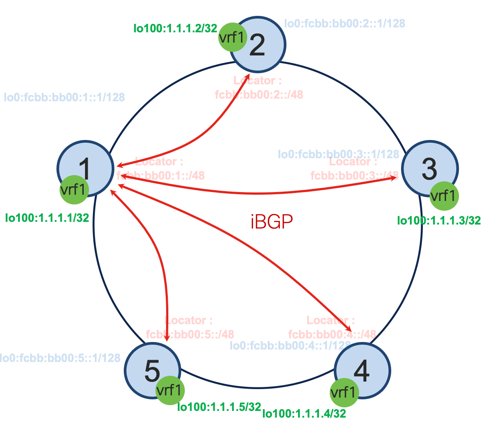

L3VPN and BGP Configuration

VRF Configuration

vrf 1
 address-family ipv4 unicast
  import route-target
   1:1
  export route-target
   1:1

interface Loopback101
 vrf 1
 ipv4 address 1.1.1.X 255.255.255.255

BGP Configuration R1:

int lo0
ipv6 addr fcbb:bb00:1::1/128
router bgp 1
 bgp router-id 1.0.0.1
 address-family vpnv4 unicast
 address-family vpnv6 unicast
 neighbor-group RRC
  remote-as 1
  update-source Loopback0
  address-family vpnv4 unicast
   route-reflector-client
  address-family vpnv6 unicast
   route-reflector-client
 neighbor fcbb:bb00:2::1
  use neighbor-group RRC
 neighbor fcbb:bb00:3::1
  use neighbor-group RRC
 neighbor fcbb:bb00:4::1
  use neighbor-group RRC
 neighbor fcbb:bb00:5::1
  use neighbor-group RRC

 vrf 1
  rd 1:1
  address-family ipv4 unicast
   segment-routing srv6
    locator MAIN
    alloc mode per-vrf
   redistribute connected

BGP Configuration R2-R5:

int lo0
ipv6 addr fcbb:bb00:X::1/128
router bgp 1
 bgp router-id 1.0.0.X
 address-family vpnv4 unicast
 address-family vpnv6 unicast
 neighbor fcbb:bb00:1::1
  remote-as 1
  update-source Loopback0
  address-family vpnv4 unicast
  address-family vpnv6 unicast

 vrf 1
  rd 1:1
  address-family ipv4 unicast
   segment-routing srv6
    locator MAIN
    alloc mode per-vrf
   redistribute connected

TI-LFA and microloop avoidance

isis 1
 address-family ipv6 unicast
  microloop avoidance segment-routing
 interface TenGigE0/0/0/0
  address-family ipv6 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
 interface TenGigE0/0/0/1
  address-family ipv6 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa

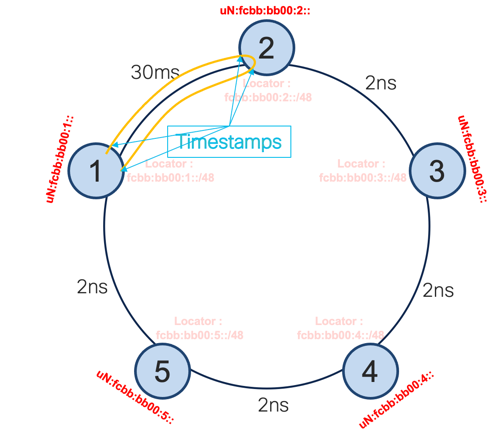

Performance Measurement

performance-measurement
 interface TenGigE0/0/0/0
  delay-measurement
 interface TenGigE0/0/0/1
  delay-measurement

Flexible Algorithm

Locator:

segment-routing
 srv6
  locators
   locator LATENCY
    micro-segment behavior unode psp-usd
    prefix fcbb:bb01:X::/48
    algorithm 128

ISIS:

router isis 1
 flex-algo 128
  metric-type delay
  advertise-definition

 address-family ipv6 unicast
  segment-routing srv6
   locator LATENCY

VRF:

vrf 2
 address-family ipv6 unicast
  import route-target
   1:2
  export route-target
   1:2

interface Loopback102
 vrf 2
  ipv6 address 2001:7543::X/128

BGP:

router bgp 1
vrf 1
  rd 1:1
  address-family ipv4 unicast
   segment-routing srv6
    locator MAIN
    alloc mode per-vrf
   redistribute connected

Configurations:

Router1, Router2, Router3, Router4, Router5
